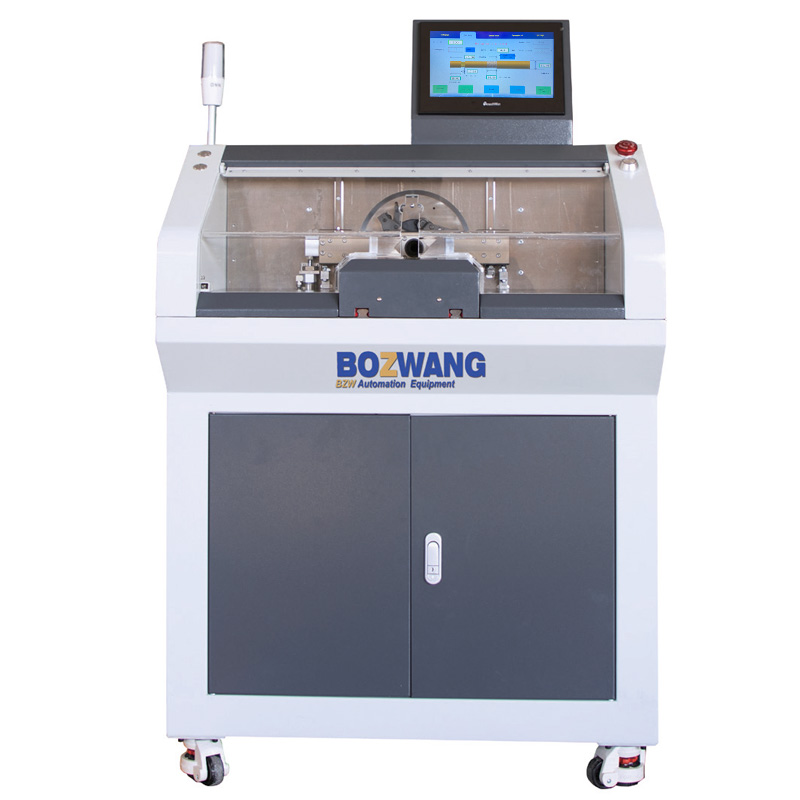

BZW-G5001 High voltage cable intelligentrotary stripping machine (70mm2)

This machine is mainly applicable to new energy high-voltage lines, which can complete thefunctions of high-voltage wire stripping, aluminum foil removal, shield net cutting, and internainsulation stripping at the same time; each function can be used independently. BZW-G5001 features:

  • wire jacket stripping
  • foil removing、
  • shield net cutting
  • peel off the internal insulation
  • shield net flip

Description

Using rotating tool holder, high machining accuracy

Adopt touch screen interface, PLC control.

The device can be connected to MES system for data interaction

For privacy reasons YouTube needs your permission to be loaded. For more details, please see our Polityka prywatności.
I Accept

Additional information

Stripping length

15 – 70 mm

Pozostała długość siatki ekranującej

≥4mm

Power

230 V, 50 Hz

Dimension

820 x 820 x 1350 mm

Weight

230 kg

Air supply

0,5 MPa – 0,8 MPa

Wire diameter

ø6 – ø18 (2.5-70mm2)
